Optical measuring and testing systems for production inspection

The Jenoptik AG manufactures optical measuring and inspection systems based on industrial image processing.

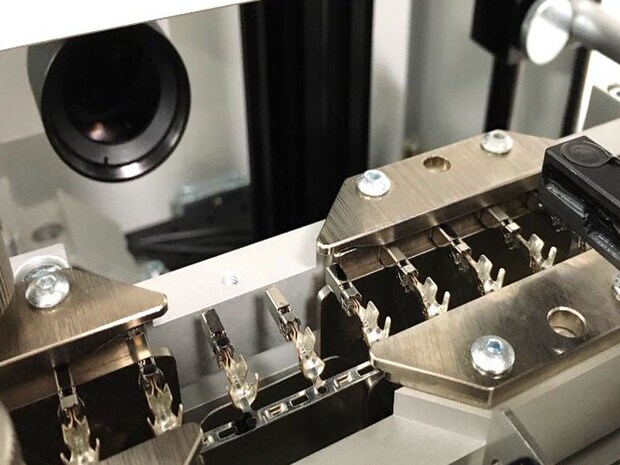

inspection electroplating lines

In-Line testing of connectors

The ideal industrial and scientific environment as well as the outstanding qualification of the employees are a guarantee for innovative top technologies. Today Jenoptik supplies tailor-made products with a wide range of services to solve complex inspection tasks. Customers in Europe, Asia and America trust these technologies.

Our product fields at a glance

Optical inspection stamping

optical inspection stamping parts

Test station for 100% inspection of punched strips and punched parts.

Optical 3D- measurement

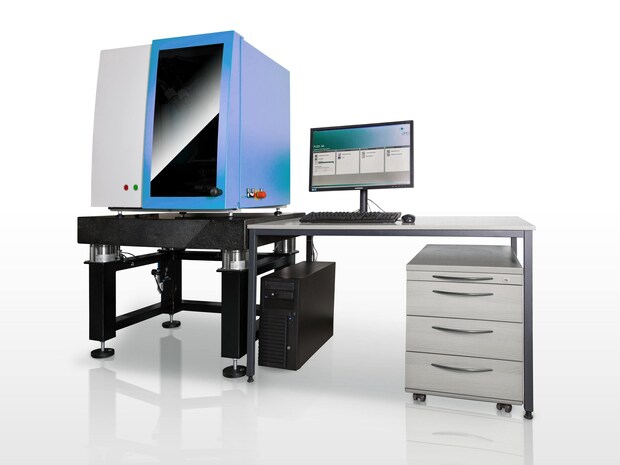

complete system flex 3a

FLEX 3A Scanner

3D scanner for automated form and coordinate measurement.

Vision systems and software

Optical Surface Inspection

Vision software for high precision part measurement and surface inspection.

Our industries

Automotive and supplier industry - 100% inspection and sampling of serial parts and prototypes during production

Especially in the automotive industry and its suppliers, there is a broad demand for camera-based automation solutions in order to design manufacturing processes effectively and to ensure a high level of quality. Our vision systems are therefore used in automatic assembly machines, in inspection and sorting systems for 100% inspection of components as well as in optical inspection stations for spot checks of individual parts or prototypes. Typical test objects are small parts of any kind, but also larger components such as drive shafts, axle journals, forged parts and many others.

Transmission parts

  • Inspection of forging blanks 2D and 2 1/2D geometry inspection with image processing and laser light-section methods
  • Check for sufficient material for the follow-up process

Kingpin

  • Sorting plant for axle journals
  • Sorting of different types based on the recognition of geometric features
  • thread check on journal
  • Contour accuracy test

Drive shafts

  • 100% inspection of drive shafts in the CNC machining centre
  • Testing of varietal purity, correct position and loading
  • End measurement of the manufactured shaft
  • Data feedback to CNC control

Sleeves

  • 100% testing of cylindrical components (sleeves)
  • Diameter, ovality and gap dimension of the sleeves
  • Detection of lint on edges and surfaces
  • Guarantee of varietal purity

Glass industry - 100% testing in container glass, flat glass and ampoule production

Our vision applications in the glass industry are in production-related use - the glass container is inspected in its still glowing state immediately after shaping, the ampoule during shaping from the raw glass tube, and the CERAN cooktop directly after final processing. If the inspection part is understood as a product of the manufacturing process, the data of an optical inspection provides valuable process information. The process can be controlled, quality is no longer sorted but produced.

Hot end inspection Container glass

  • 100% inspection of glass containers in the hot area of production
  • Inspection of geometric dimensional accuracy
  • Evaluation and regulation of the shaping process
  • Throughput > 600 containers per minute

Measuring station container glass

  • Single container testing in the laboratory or cold area of production
  • High-precision measurement of the outer contour
  • Container heights up to 400 mm, container diameter up to 200 mm
  • Manual operation

Ampoules

  • In-line inspection of ampoules
  • Control of the glass cylinders in process
  • Real-time control of the burner duration based on optical data
  • Measurement of the finished ampoules before they are discharged from the rotary indexing machine

Flat Glass

  • 100% inspection of ceramic hobs after processing
  • Detection of edge defects such as conchoidal and chatter marks
  • Testing of the C-section
  • Measurement of the part geometry with feedback into the grinding process

Aerospace industry - Providing highly accurate 3D data for optimization and production monitoring of turbine blades

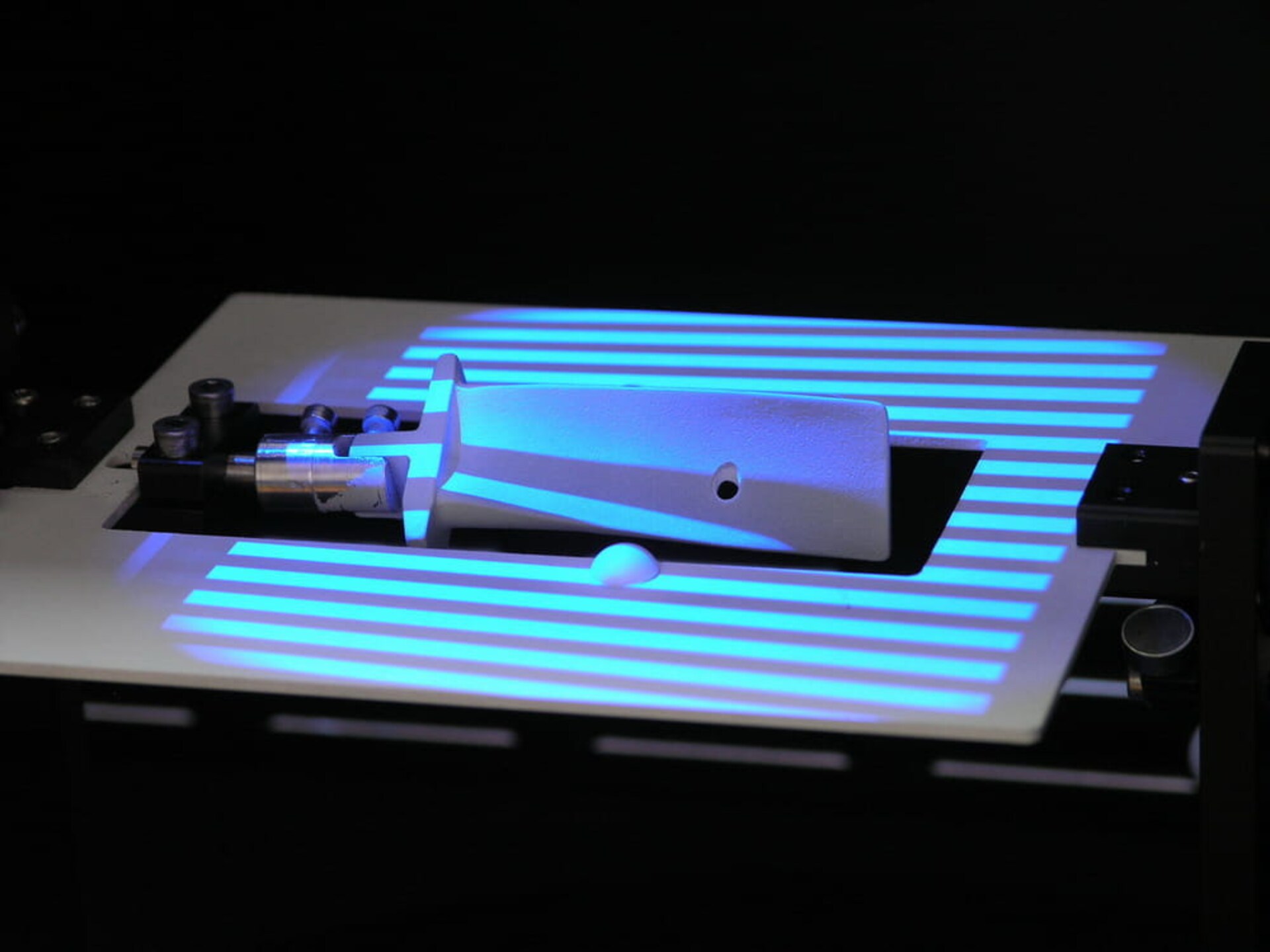

Turbine Blade

The provision of highly accurate 3D data of turbine blades is of particular interest to the aerospace industry. The data are used for simulation and optimization as well as for initial sample and production control of machined or additive manufactured or coated serial components. In addition, optical 3D measuring systems provide information on wear and tear and thus on the optimal reworking of used components by laser cladding during maintenance.

Mechanical and plant engineering - integration of vision systems and automation solutions

As a partner for the specialists in mechanical and plant engineering, we provide with our own vision systems measuring and testing solutions for the integration and completion of customer-specific individual projects and series machines. The extensive software libraries and diverse software interfaces allow even complex, interlinked automation solutions to be realized. With the tools of artificial intelligence, additional test engineering requirements can be met today that were unsolvable with standard methods of 2D and 3D image processing.

Automatic punching and bending machine

  • 100% control of punched and bent parts in automatic machines
  • Precise contour inspection during the manufacturing process
  • Use of several high-resolution cameras for visualization and precise measurement of large components

2-spindle drilling machine

  • Post-etch 2-spindle drilling machine for printed circuit boards
  • Automatic alignment with two-camera image processing
  • Motor control with three motors
  • Total accuracy per layer 1-2 µm

Medical technology - Testing of implants and prostheses

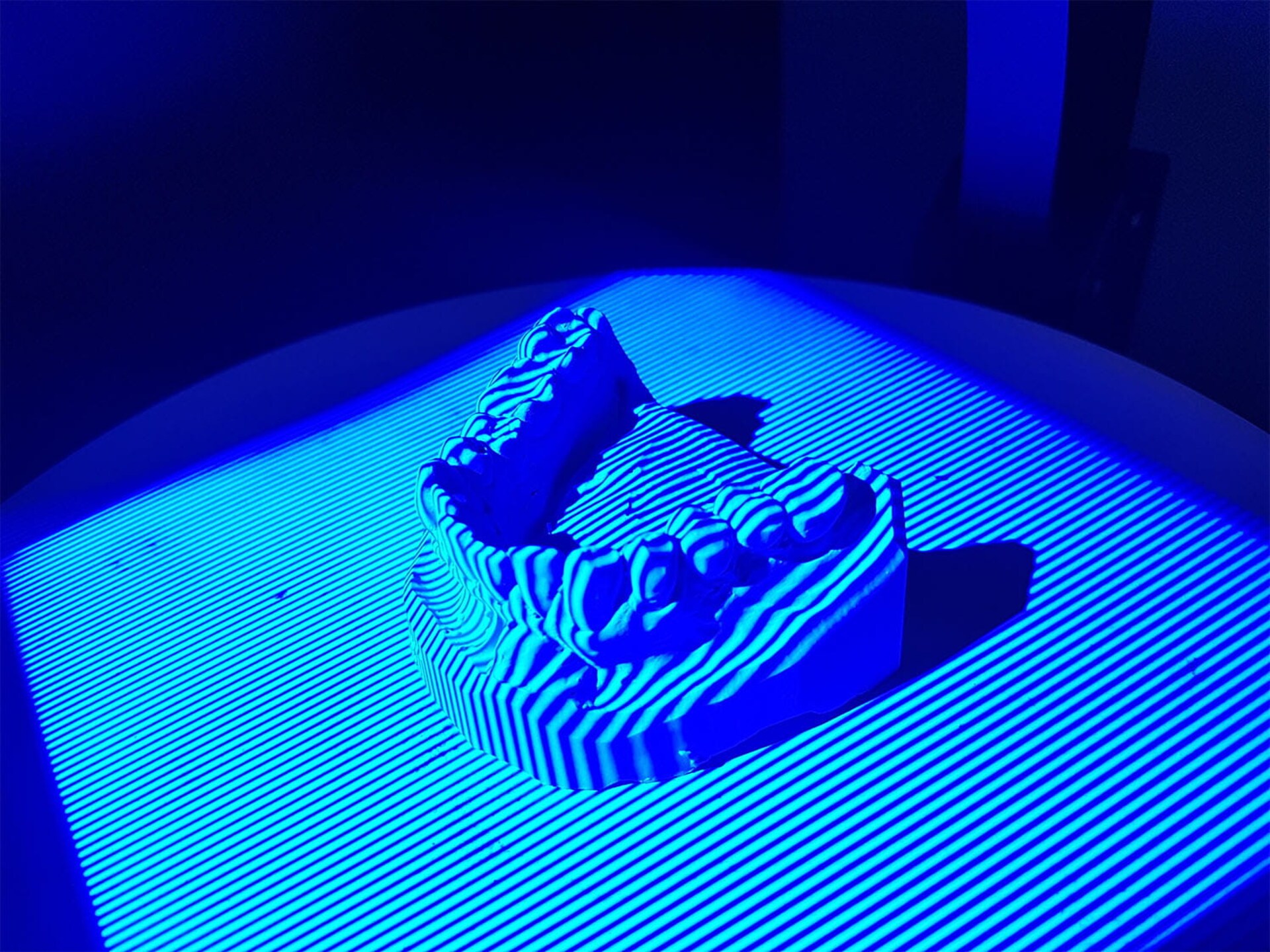

inspection of dentures

Inspection of dentures

Our extensive experience in the inspection and sorting of stamped, plastic and hybrid components, assembly groups as well as turned and milled parts makes us the ideal partner for the inspection of medical technology products. OTTO vision systems guarantee highest accuracy and speed in this demanding environment. From complex plastic housings to injection needles and deep-drawn parts, we offer solutions for incoming goods, initial sampling and 100% inspection in production.

Metalworking industry - Quality inspection and process control for tool components and small parts

A camera system does not differentiate between a plastic, glass or metal part: The optimal solution is determined by the interaction between optics, illumination, camera technology and of course the software of a vision system. Nevertheless, the metal processing industry is of particular importance - due to the number of pieces produced, the high quality standards and the resulting inspection requirements. With our vision systems we inspect deep-drawn parts as well as turned parts, sintered and cast parts, piston rings, tool parts and many others.

Piston rings

  • 100% inspection of the surface of piston rings
  • All-around inspection during part rotation
  • Defect detection with high resolution on the top and bottom side of the part as well as along the inner and outer surfaces
  • Component diameter from 30 - 120 mm

    Thermoformed sleeves

  • 100% inspection of thermoforming sleeves in an automatic rotary indexing machine

  • Part inspection during 360° rotation

  • Detection of cracks and surface defects

  • Testing of approx. 50 parts per minute

Turned part inspection

  • Combined inspection of turned parts for surface defects and geometric features
  • Downstream sorting based on the test results
  • Optionally clocked or continuous part throughput

Mold cores for injection molds

  • Inspection of eroded mould cores as part of the incoming goods inspection
  • Planar 3D scanning with fringe projection
  • Automated part handling with reference turning fixture
  • Automated target-performance comparison to CAD

Sintered metal parts

  • 100% inspection of sintered metal parts
  • Detection of surface defects
  • Guarantee of varietal purity
  • Throughput approx. 80 parts per minute

Zinc Die Casting

  • Initial sampling and prototype measurement of zinc die-cast parts
  • Highly accurate, automated data acquisition
  • Full area 3D digitization with fringe projection
  • target-performance comparison to CAD data
  • Determination of form and position tolerances

Hose clamps

  • 100% testing of hose clamps
  • Geometry inspection from two views
  • Varietal purity
  • Up to 300 parts per minute
  • Feeding with storage hopper and vibratory conveyor

Screws

  • 100% inspection of screws
  • Multi-camera system
  • Screws hanging in the flow
  • Eddy current crack testing
  • Mechanical testing of the internal drives

Plastics processing industry - Production monitoring of moulded parts, hybrid parts and assemblies

Inspection systems from OTTO Vision are successfully used in various areas of the value chain in the plastics processing industry. First samples, prototypes and random samples can be holistically evaluated with optical 3D measuring systems and compared against CAD target models. In addition, molded and hybrid parts as well as overmolded strip products are 100% inspected for dimensions, completeness and presence of details as well as for overmolding or material residues. Our vision systems are therefore widely used in automatic assembly machines, inspection stations and measuring systems.

Hybrid parts

  • 100% inspection of overmoulded metal parts (multicoloured)
  • 6-camera system
  • Arrangement directly after injection moulding machine
  • heck for dimension, completeness, overspray etc.

Moulded parts

  • Initial sampling and prototype measurement of plastic injection moulded parts
  • Highly accurate, automated data acquisition
  • Full area 3D digitization with fringe projection
  • target-performance comparison to CAD data
  • Determination of form and position tolerances

Plastic circuit boards

  • Monitoring of injection moulds through random sampling
  • Contour accuracy of the parts
  • Testing of protruding nipples for presence and length
  • 16 tests possible per shift

Plastic gaskets

  • 100% inspection of plastic seals in the punching tool
  • Parallel operation of two in-die modules in one mould
  • Control for parts separation
  • Inspection of geometric features and for surface defects

Stamping technology - Testing of punched strips and loose falling parts in the tool, after the tool and in the electroplating

punching

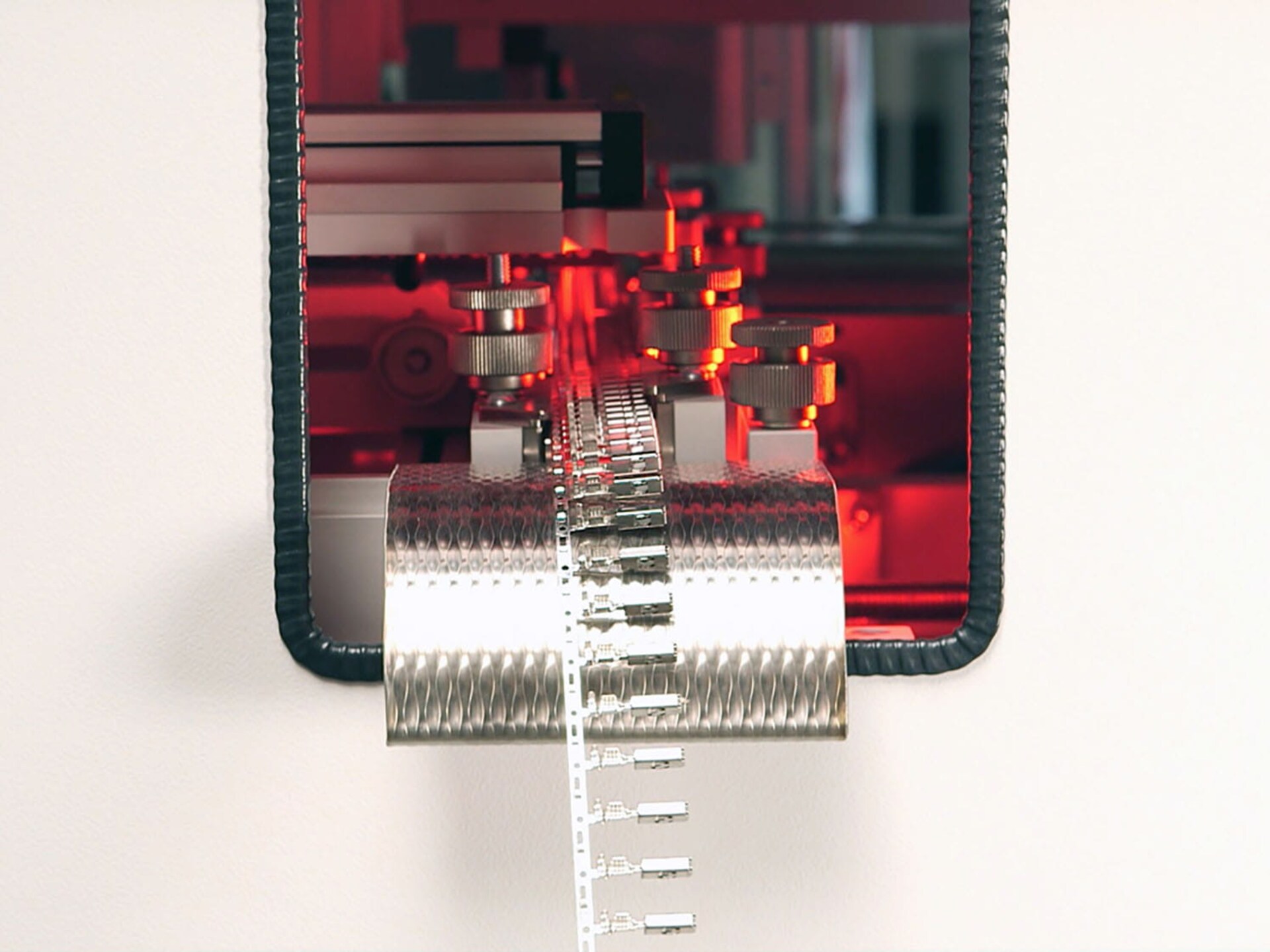

PSS-40 Double Track

Every day, billions of stampings are produced worldwide as loosely falling products and as strip products in progressive dies, on automatic stamping and bending machines or in transfer presses. The output can amount to several thousand parts per minute, production tolerances are now in the small hundredths of a millimeter range. In addition to the demand for 100% control, the customer expects high system availability, efficient changeover processes, material savings, traceability and continuous cost reduction. As the technology leader in this segment, Jenoptik offers OTTO Vision solutions for quality control and process monitoring for the stamping and forming industry and electroplating with complete inspection stations for strip products as well as with customized vision systems.

Connectors

  • 100% inspection of connectors
  • Parts testing on all presses with the test stations of the PSS-40 device family
  • Inspection of geometric features, contours, weld spots and surface defects
  • Immediate detection of missing parts, tool inspection and process optimization

Male connectors

  • 100% inspection of male connectors
  • Parts testing on all presses
  • Use of test stations with up to 6 cameras
  • Inspection of geometric features and contours
  • Operation and data archiving via a central control station

Press-Fit Contacts

  • Fast, non-destructive inspection of the press-fit zone of press-fit contacts
  • High-precision, extremely high-resolution 3D digitization with stereo sensor
  • Fully automated data acquisition and evaluation
  • Suitable for workers and production
  • Replacement of time-consuming, manually created micrographs
  • Sampling
  • Measuring time approx. 5 min

Punched grids

  • 100% control of punching grids
  • Test cells with up to 8 cameras
  • Inspection of geometry and contour features
  • Testing of up to 300 characteristics per article

Razor Blades

  • 100% control of blades in the punching tool
  • 500 Stroke double falling, per stroke 120 Test parameters
  • Control for parts separation
  • Inspection of geometric features and weld spots

Seal inspection in the tool

  • 100% inspection of seals in the punching tool
  • Parallel operation of two in-die modules in one mould
  • Control for parts separation
  • Inspection of geometric features and for surface defect points

The business segment OTTO Vision of the Jenoptik Group

About Us

For 30 years now, Otto Vision inspetion systems have stood for high-end machine vision applications in the supplier, automotive, stamping and glass industries as well as many other sectors of the global market.

OTTO Vision Technology GmbH - we maintain a close cooperation with partners in precision optics, mechanical engineering and image processing hardware. On this basis we develop complex inspection and sorting systems as well as sophisticated measuring systems, which are now used in approx. 2,000 industrial applications.

OTTO Vision Technology GmbH - we rely on the trustful cooperation with our customers and consider it a decisive basis to combine industry-specific requirements and metrological services.

Technologies for your production

"We combine team spirit with creative individual performance in order to find the optimal solution for every testing task. Dr.-Ing. Dr. rer. nat. Roland Fiedler

OTTO offers its customers integrated technologies for product control and process optimisation. The inspection systems are based on a uniform hardware, software and control concept. They are part of a test system and data management (PSDM). This unit of precise testing and intelligent data evaluation enables an analysis and optimisation of the production processes beyond quality assurance.

OTTO vision technologies lead to multiple customer benefits: 100% inspected parts, shorter start-up phases, longer machine runtimes, less material consumption, more continuous production, reduced effort for inspection during production, minimization of complaints, better user satisfaction and competitiveness...

Everything from one source

The success of OTTO Vision Technology is based on its comprehensive expertise in the areas of software development, design and production. With this potential, the functionality of the devices is guaranteed in the long term and the technology is kept up to date.The continuous customer support from technical advice to professional project realization and service is provided by the company headquarters as well as by the regional sales and service offices.

Milestones in business development

Kristin Holzhey and the founder Gunter and Reinhard Otto

  • 2021: Fusion of Otto Vision Technology GmbH with JENOPTIK Optical Systems GmbH
  • 2019: OTTO Vision wins the Jenoptik Group's Innovation Award with the FLEX-3A 3D scanner
  • 2019: Kristin Holzhey takes over the management
  • 2019: Market launch of 3D scanners with high-resolution 12-MP cameras
  • 2018: 100% takeover by the JENOPTIK Group
  • 2016: BRUDERER MACHINERY (SUZHOU) LTD. takes over representation in China
  • 2015: Extension of the company building
  • 2013: First projects in China and Brazil
  • 2012: New generation high-speed image processing
  • 2010: Expansion of business activities into the field of optical 3D metrology
  • 2008: The 1.000th system was installed
  • 2004: BRUDERER MACHINERY INC. takes over the representation in the USA
  • 2002: Market launch of test stations for punched strips, sorting machines and measuring robots
  • 2000: moved into own company building in Jena-Maua
  • 1997: Development of a new device generation for the container glass industry - a testing device for online inspection of still glowing glass containers
  • 1995: First major project in the automotive industry - a complex testing and sorting system for Ford-Werke AG
  • 1994: First applications in the high-performance stamping industry and in mechanical engineering
  • 1993: Development of an own image processing system CVS 100
  • 1992: Company foundation by Gunter and Reinhard Otto as an engineering office for industrial image processing
