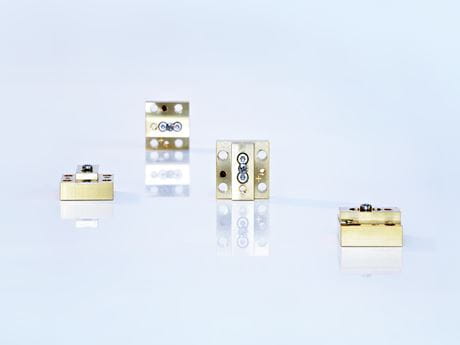

Mounted Diode Lasers
Diode lasers from Jenoptik have an open design and use the latest mounting technology.
Product feature
- Wavelength: 808 - 1470nm
- Output power: 23 - 300W
- Operation mode: CW / QCW
- Cooling: actively cooled / passively cooled
- Collimation: fast axis / fast axis and slow axis / without
- Heatsink: actively cooled / cn / cs
You can choose between cw and qcw operation. We offer standard wavelengths of 808 nm, 940 nm and 980 nm. On request, we can optimize diode lasers for other wavelengths thanks to the flexibility of our own semiconductor production facility in Berlin. You also receive different emission heights in standardized packages. The collimation is available in Fast-Axis (FA) only or in Fast-Axis (FA/SA).
Our patented CN design means that the bars of our mounted diode lasers are cooled on both sides. This means you can achieve thermal resistances that are very close to those of a microchannel heat sink. Our diode lasers also deliver high output power and a low smile.
Benefits
- Maximum efficiency: High optical output power of 8 W to 200 W cw and 300 W qcw.
- Reliable: Long lifetime through predominant use of Jenoptik semiconductor lasers.
- Versatile: Flexible integration into different systems.
- Precise: Low smile.
- Easy integration: Compact and robust designs.
Fields of Application
- Material processing: Plastic welding, soldering, hardening and annealing of metals.
- Medical technology: Hair removal, surgery, dentistry and ophthalmology.
- Illumination: IR monitoring.
- Metrology: Particle counting.
- Printing industry: Computer-to-Plate (CtP).
- Science and research: Excitation light source.
- Industry: Pumping sources for fiber lasers and solid-state lasers.
Product preview
Downloads
Variation of Products
| Wavelength in nm | Output power in W | Operation mode | Cooling | Collimation | Heatsink | Product name / data sheet |
|---|---|---|---|---|---|---|
| 808 | 32 | CW | passively cooled | fast axis and slow axis | cs | JOLD-32-CPBN-1L |
| 808 | 35 | CW | passively cooled | fast axis | cs | JOLD-35-CPFN-1L |
| 808 | 40 | CW | passively cooled | without | cs | JOLD-40-CPNN-1L |
| 808 | 40 | CW | passively cooled | without | cs | JOLD-40-xPNN-1L-808nm |
| 808 | 50 | CW | passively cooled | fast axis and slow axis | cs | JOLD-50-CPBN-1L |
| 808 | 50 | CW | actively cooled | without | actively cooled | JOLD-50-CANN-1L |
| 808 | 55 | CW | passively cooled | fast axis | cs | JOLD-55-CPFN-1L |
| 808 | 60 | CW | passively cooled | without | cs | JOLD-60-CPNN-1L |
| 808 | 60 | CW | passively cooled | without | cs | JOLD-60-xPNN-1L-808nm |
| 808 | 80 | CW | actively cooled | without | actively cooled | JOLD-80-CANN-1L |
| 808 | 90 | QCW | passively cooled | fast axis | cs | JOLD-90-QPFN-1L |
| 808 | 100 | QCW | actively cooled | without | actively cooled | JOLD-100-QANN-1L |
| 808 | 100 | QCW | passively cooled | without | cs | JOLD-100-QPNN-1L |
| 808 | 100 | QCW | passively cooled | without | cs | JOLD-100-xPNN-1L-808nm |
| 808 | 225 | QCW | passively cooled | fast axis | cs | JOLD-225-QPFN-1L |
| 808 | 250 | QCW | passively cooled | without | cs | JOLD-250-QPNN-1L |
| 808 | 270 | QCW | passively cooled | fast axis | cs | JOLD-270-QPFN-1L |
| 808 | 300 | QCW | passively cooled | without | cs | JOLD-300-QPNN-1L |
| 808 | 300 | QCW | passively cooled | without | cs | JOLD-300-QPxN-1L-808nm |
| 880 | 32 | CW | passively cooled | fast axis and slow axis | cs | JOLD-32-CPBN-1L |
| 880 | 35 | CW | passively cooled | fast axis | cs | JOLD-35-CPFN-1L |
| 880 | 40 | CW | passively cooled | without | cs | JOLD-40-CPNN-1L |
| 880 | 50 | CW | passively cooled | fast axis and slow axis | cs | JOLD-50-CPBN-1L |
| 880 | 55 | CW | passively cooled | fast axis | cs | JOLD-55-CPFN-1L |
| 880 | 60 | CW | passively cooled | without | cs | JOLD-60-CPNN-1L |
| 880 | 60 | CW | passively cooled | without | cs | JOLD-60-xPNN-1L-880nm |
| 880 | 68 | CW | passively cooled | fast axis and slow axis | cs | JOLD-68-CPBN-1L |
| 880 | 80 | CW | passively cooled | without | cs | JOLD-80-CPNN-1L |
| 915 | 32 | CW | passively cooled | fast axis and slow axis | cs | JOLD-32-CPBN-1L |
| 915 | 35 | CW | passively cooled | fast axis | cs | JOLD-35-CPFN-1L |
| 915 | 40 | CW | passively cooled | without | cs | JOLD-40-CPNN-1L |
| 915 | 40 | CW | passively cooled | without | cs | JOLD-40-xPNN-1L-915nm |
| 915 | 50 | CW | passively cooled | fast axis and slow axis | cs | JOLD-50-CPBN-1L |
| 915 | 55 | CW | passively cooled | fast axis | cs | JOLD-55-CPFN-1L |
| 915 | 60 | CW | passively cooled | without | cs | JOLD-60-CPNN-1L |
| 915 | 60 | CW | passively cooled | without | cs | JOLD-60-xPNN-1L-915nm |
| 915 | 68 | CW | passively cooled | fast axis and slow axis | cs | JOLD-68-CPBN-1L |
| 915 | 80 | CW | passively cooled | without | cs | JOLD-80-CPNN-1L |
| 938 | 40 | CW | passively cooled | without | cs | JOLD-40-xPNN-1L-938nm |
| 938 | 60 | CW | passively cooled | without | cs | JOLD-60-xPNN-1L-938nm |
| 938 | 100 | QCW | passively cooled | without | cs | JOLD-100-xPNN-1L-938nm |
| 940 | 32 | CW | passively cooled | fast axis and slow axis | cs | JOLD-32-CPBN-1L |
| 940 | 35 | CW | passively cooled | fast axis | cs | JOLD-35-CPFN-1L |
| 940 | 40 | CW | passively cooled | without | cs | JOLD-40-CPNN-1L |
| 940 | 50 | CW | passively cooled | fast axis and slow axis | cs | JOLD-50-CPBN-1L |
| 940 | 55 | CW | passively cooled | fast axis | cs | JOLD-55-CPFN-1L |
| 940 | 60 | CW | actively cooled | without | actively cooled | JOLD-60-CANN-1L |
| 940 | 60 | CW | passively cooled | without | cs | JOLD-60-CPNN-1L |
| 940 | 68 | CW | passively cooled | fast axis and slow axis | cs | JOLD-68-CPBN-1L |
| 940 | 80 | CW | actively cooled | without | actively cooled | JOLD-80-CANN-1L |
| 940 | 80 | CW | passively cooled | without | cs | JOLD-80-CPNN-1L |
| 940 | 90 | CW | passively cooled | fast axis | cs | JOLD-90-CPFN-1L |
| 940 | 90 | QCW | passively cooled | fast axis | cs | JOLD-90-QPFN-1L |
| 940 | 100 | QCW | actively cooled | without | actively cooled | JOLD-100-QANN-1L |
| 940 | 100 | CW | passively cooled | without | cs | JOLD-100-CPNN-1L |
| 940 | 100 | QCW | passively cooled | without | cs | JOLD-100-QPNN-1L |
| 940 | 120 | CW | passively cooled | without | cn | JOLD-120-CPNN-1L |
| 940 | 160 | CW | passively cooled | without | cn | JOLD-160-CPNN-1L |
| 940 | 180 | CW | passively cooled | fast axis | cn | JOLD-180-CPFN-1L |
| 940 | 200 | CW | passively cooled | without | cn | JOLD-200-CPNN-1L |
| 976 | 40 | CW | passively cooled | without | cs | JOLD-40-xPNN-1L-976nm |
| 976 | 60 | CW | passively cooled | without | cs | JOLD-60-xPNN-1L-976nm |
| 980 | 32 | CW | passively cooled | fast axis and slow axis | cs | JOLD-32-CPBN-1L |
| 980 | 35 | CW | passively cooled | fast axis | cs | JOLD-35-CPFN-1L |
| 980 | 40 | CW | passively cooled | without | cs | JOLD-40-CPNN-1L |
| 980 | 50 | CW | passively cooled | fast axis and slow axis | cs | JOLD-50-CPBN-1L |
| 980 | 50 | CW | actively cooled | without | actively cooled | JOLD-50-CANN-1L |
| 980 | 55 | CW | passively cooled | fast axis | cs | JOLD-55-CPFN-1L |
| 980 | 60 | CW | passively cooled | without | cs | JOLD-60-CPNN-1L |
| 980 | 68 | CW | passively cooled | fast axis and slow axis | cs | JOLD-68-CPBN-1L |
| 980 | 80 | CW | actively cooled | without | actively cooled | JOLD-80-CANN-1L |
| 980 | 80 | CW | passively cooled | without | cs | JOLD-80-CPNN-1L |
| 980 | 90 | CW | passively cooled | fast axis | cs | JOLD-90-CPFN-1L |
| 980 | 100 | CW | passively cooled | without | cs | JOLD-100-CPNN-1L |
| 980 | 120 | CW | passively cooled | without | cn | JOLD-120-CPNN-1L |
| 980 | 160 | CW | passively cooled | without | cn | JOLD-160-CPNN-1L |
| 1470 | 23 | CW | passively cooled | fast axis | cn | JOLD-23-CPFN-1L |
| 1470 | 25 | CW | passively cooled | without | cn | JOLD-25-CPNN-1L |
Please contact us for more information!
